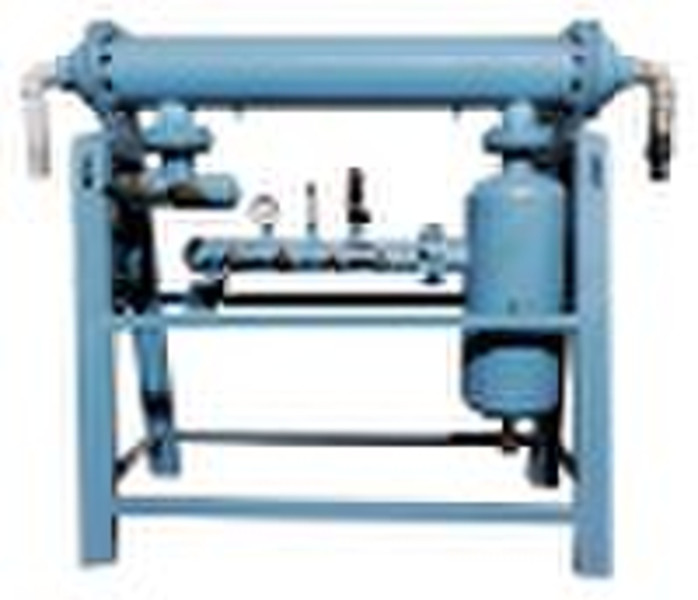

Aftercooler

Features: Unique system whereby water passes through the copper-nickel tubing and air flows in the opposite direction through baffled plate inside The hot galvanized shell casing ensures trouble-free operation of aftercoolers Each aftercooler is furnished with correct number of square inches of zinc anode to minimize galvanic corrosion Aftercoolers are fitted with an efficient centrifugal moisture separator that comes with a 75 micron filter Compressed air is hot and saturated with moisture upon leaving the air compressor Moisture in the compressed air-supply will corrode working parts, shortening their life-span and resulting in repair and replacement down time Functions: Water-cooled aftercooler performs two essential functions Rapidly reduce temperature of the discharged air from the compressor to a safe operating range Substantial amount of the entrained moisture will be removed. Specifications: Model No: SSCE-AC-16 Air Capacity:5600cfm Air Inlet Temperature:80 deg.C Air Outlet Temperature:38 deg.C Entering Cooling water:28 deg.C Cooling water quantity:240gpm Safe Working Pressure:10bar (air)/10bar (cooling water) Dimension:2.9 x 0.9 x 2.1m (H) Weight:1200kg Inlet Manifold: 8ports x 2" c/w ball-valves Outlet Manifold:16ports x 1-1/4" ball-valves and 6 ports x 1" c/w ball-valves Standard Accessories:Pressure Gauge, Safety relief valve, Temperature gauge, Moisture-separator with drain valve, Inlet-water filter and Drain hose (50ft)
